Standard Non-KDSS sets IN STOCK NOW.

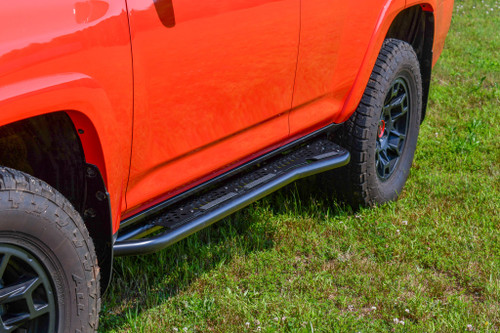

One of the most important armor pieces on the vehicle, rock sliders protect the rocker panels when navigating obstacles off road, and double as recovery and jack points.
Built with a one-piece 1/4" metal backing plate that bolts directly to threaded holes in the frame. Each side plate is fastened to the frame with Grade 10.9 bolts. A welded-in fill plate serves two purposes - a flat space to step on when entering and exiting the vehicle, and added rigidity between the tubing for lateral impacts from trail obstacles.
Tubing is 1.75" round, .120" wall DOM. 1/4" gussets reinforce the weldment at the back plate attachment points.
Sliders protect the rocker panel from rocks, stumps, trees, and other obstacles off road. In technical situations they let you slide over or rotate around obstacles - hence the name. They also work as a Hi-Lift jack point along their full length, and as a hard point for non-kinetic sideways recoveries.
Sliders ship raw steel, no paint or powder coating, as a pair, with installation hardware. Painting or powder coating is the customer's responsibility. A spray paint refresh is usually fine since sliders take a beating and often need touch-ups in the field. Before installation, chase the frame threads with an M8 tap and penetrating oil to clear out dirt and rust.
Sliders are built to order and subject to lead times.
